The densest waters in the Atlantic overturning circulation, Antarctic Bottom Water (AABW), originate in the Weddell Sea, as Weddell Sea Deep Water. They circulate within the Weddell Sea, and some can escape the Weddell Sea and flow into the Scotia Sea, from where they can penetrate into the Atlantic.

These dense waters are changing rapidly. In the Atlantic, AABW has been observed to be warming rapidly, with measurable warming having reached the North Atlantic in the space of just a few decades. Significant interannual variability is also present in AABW layers, superposed on the long-term warming trend. For example, in 2016-2018, data have revealed a temporary reversal in the trend in the deep Scotia and Weddell seas. This makes clear identification of the warming more difficult in some places, and adds a layer of complexity to the system, which needs to be understood. The underlying causes of the warming trend in AABW, and the temporary return of denser bottom waters, have so far not been determined, primarily due to a lack of data with which to analyse the problem.

As part of the BAS Polar Oceans team’s long-term monitoring programme, we are repeating a hydrographic section annually. This section was first occupied in 1995 as part of the World Ocean Circulation Experiment, where the cruise was designated A23; this name has stuck, and is used for the subsequent repeats. In total, parts of the section have been occupied 15 times from 1995 to 2023. Our current efforts concentrate on the northern part of the section, from the northern Weddell Sea, crossing South Scotia Ridge, and finishing at the shelf break near South Georgia. This is an ideal location for monitoring long-term changes in AABW as it leaves the Weddell Sea, and as it circulates within the northern limb of the Weddell Gyre. Annual or biennial occupations of this section are needed to disentangle the interannual variability separately from the long-term warming trend, and hence better understand the causes of both. In 2016-2022, this was done as part of the ORCHESTRA programme. A repeat in 2025 is scheduled as part of BIOPOLE.

At each station we lower a CTD (conductivity-temperature-depth) profiler mounted in a round frame (rosette) on a conducting wire from the surface to within 10 m of the seabed. As we raise the instruments, we remotely trigger spring-loaded bottles on the rosette (Niskin bottles) to close, letting us obtain water samples from different depths to calibrate the conductivity sensors, vital for measuring minute changes in salinity, and occasionally to measure other chemical parameters such as oxygen isotope ratios, dissolved oxygen concentrations, and inorganic nutrients. We also have a Lowered Acoustic Doppler Current Profiler (LADCP) attached to the rosette, giving us a snapshot of the currents throughout the water column at each station.

Year Cruise metadata and cruise report Ship Chief Scientist
1995 JR010 RRS James Clark Ross Karen Heywood & Brian King
1999 JR040 RRS James Clark Ross Karen Heywood
2005 33RO200501 RV Ronald H. Brown Rik Wanninkhof & Scott Doney
2010 JR235 RRS James Clark Ross Mike Meredith
2012 JR272A RRS James Clark Ross Hugh Venables
2013 JR281 (JR272B) RRS James Clark Ross J-B Sallée
2013-2014 33RO20131223 RV Ronald H. Brown Rik Wanninkhof & Leticia Barbero
2014 JR299 (JR272C) RRS James Clark Ross Andrew Meijers
2015 JR310 (JR272D) RRS James Clark Ross Povl Abrahamsen
2016 JR15006 RRS James Clark Ross Andrew Meijers
2017 JR16004 RRS James Clark Ross J-B Sallée
2018 JR17003 RRS James Clark Ross Povl Abrahamsen
2020 DY113 RRS Discovery Yvonne Firing
2021 JC211 RRS James Cook Povl Abrahamsen
2023 DY158 RRS Discovery Ryan Saunders

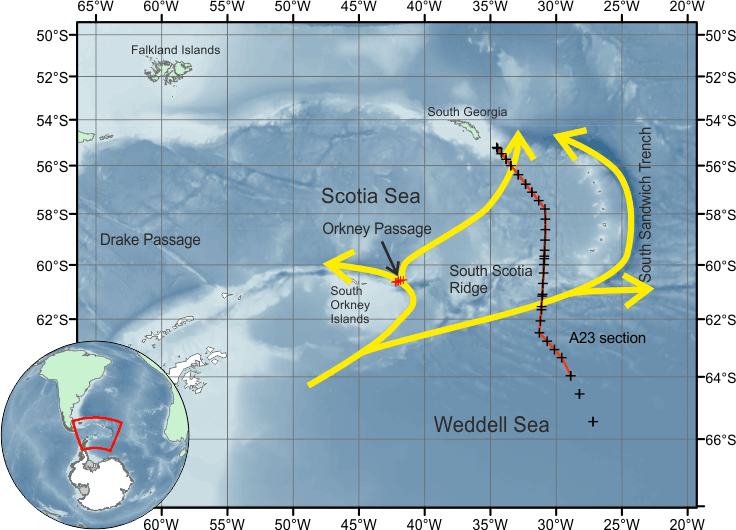

The circulation of Weddell Sea Deep Water (yellow arrows) in the Weddell & Scotia seas, based on a figure from Meredith et al. (2008). The part of the A23 section that is repeated annually is highlighted in red
The circulation of Weddell Sea Deep Water (yellow arrows) in the Weddell & Scotia seas, based on a figure from Meredith et al. (2008). The part of the A23 section that is repeated annually is highlighted in red

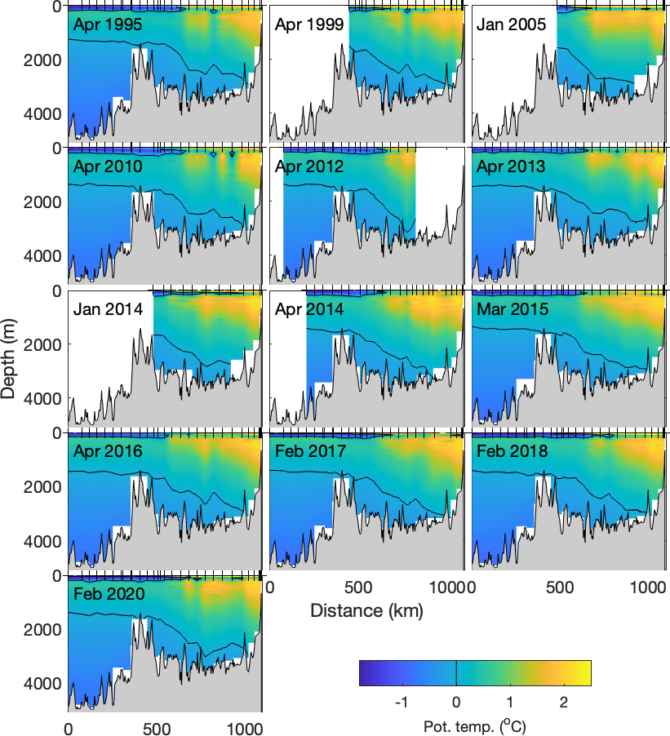

Sections of potential temperature from the first 13 occupations of the A23 section


Abrahamsen, E. P., Meijers, A. J. S., Polzin, K. L., Naveira Garabato, A. C., King, B. A., Firing, Y. L., Sallée, J.-B., Sheen, K. L., Gordon, A. L., Huber, B. A., and Meredith, M. P. (2019) Stabilization of dense Antarctic water supply to the Atlantic Ocean overturning circulation, Nature Climate Change, 9 (10), 742-746. https://doi.org/10.1038/s41558-019-0561-2

Johnson, G. C., and S. C. Doney (2006), Recent western South Atlantic bottom water warming, Geophys. Res. Lett., 33, L14614. https://doi.org/10.1029/2006GL026769

Jullion, Loïc, Naveira Garabato, Alberto C., Meredith, Michael P., Holland, Paul R., Courtois, Peggy, King, Brian A., (2013) Decadal freshening of the Antarctic Bottom Water exported from the Weddell Sea. Journal of Climate, 26. 8111-8125. https://doi.org/10.1175/JCLI-D-12-00765.1

Meijers, A. J. S., Meredith, M. P., Abrahamsen, E. P., Morales Maqueda, M. A., Jones, D. C., and Naveira Garabato, A. C. (2016) Wind-driven export of Weddell Sea slope water. Journal of Geophysical Research: Oceans, 121. 7530-7546. https://doi.org/10.1002/2016JC011757

Meredith, M. P., Naveira Garabato, A. C., Stevens, D. P., Heywood, K. J., and Sanders, R. J. (2001) Deep and Bottom Waters in the Eastern Scotia Sea: Rapid Changes in Properties and Circulation, Journal of Physical Oceanography, 31, 2157-2168. https://doi.org/10.1175/1520-0485(2001)031<2157:DABWIT>2.0.CO;2

Meredith, Michael P., Naveira Garabato, Alberto C., Gordon, Arnold L., Johnson, Gregory C., (2008) Evolution of the deep and bottom waters of the Scotia Sea, Southern Ocean, during 1995-2005. Journal of Climate, 21. 3327-3343. https://doi.org/10.1175/2007JCLI2238.1

Meredith, Michael P., Juillon, Loic, Brown, Peter J., Naveira Garabato, Alberto C., Couldrey, Matthew P., (2014) Dense waters of the Weddell and Scotia Seas: recent changes in properties and circulation. Philosophical Transactions of the Royal Society of London, A, 372. 20130041. doi:10.1098/rsta.2013.0041
